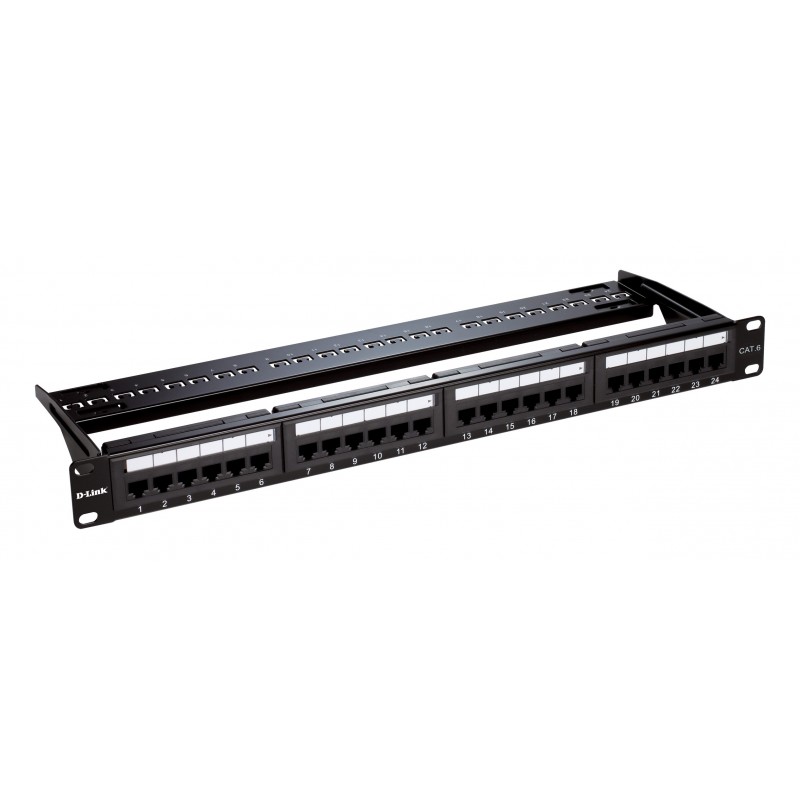

D-LINK NPPC61BLK241 Patch Panel

Heavy-Duty Frame: Constructed from 1.6mm Thick Cold Rolled Steel (SPCC), the panel offers exceptional physical rigidity, ensuring it won’t bend or flex when cables are punched down.

Superior Conductivity: Each of the 24 RJ45 ports features Phosphor Bronze contacts plated with 50 micro-inches of Gold. This thick plating ensures high-speed signal integrity and prevents corrosion over years of use.

Standardized Form Factor: Designed for a standard 19-inch equipment rack, it occupies exactly 1U of space, making it highly efficient for high-density environments.

Category 6 Rated: Fully compliant with ANSI/TIA/EIA 568C.2 standards, supporting high-bandwidth applications and Gigabit Ethernet speeds (up to 250 MHz).

Universal Termination: The IDC (Insulation Displacement Connector) blocks are Dual-Type, meaning they are compatible with both 110 and Krone punch-down tools.

Flexible Wiring: Printed color-coding on the rear of the panel supports both T568A and T568B wiring standards, allowing for universal compatibility with existing infrastructure.

Cable Gauge Support: Accommodates a wide range of horizontal cabling, accepting 22 to 26 AWG solid or stranded wires.

Port Identification: Includes built-in ID labeling strips with transparent covers. This allows technicians to clearly mark and organize connections (e.g., “Accounting,” “Server 01”) for rapid troubleshooting.

Module Design: The ports are grouped into 6-port modules, which helps organize cable bundles as they enter the rear of the panel.

Reliability: Rated for a minimum of 750 insertion cycles for the front jacks and 200 termination cycles for the rear IDC blocks, ensuring a long operational lifespan.
