MERCUSYS MW325R

Extreme Wireless Coverage:

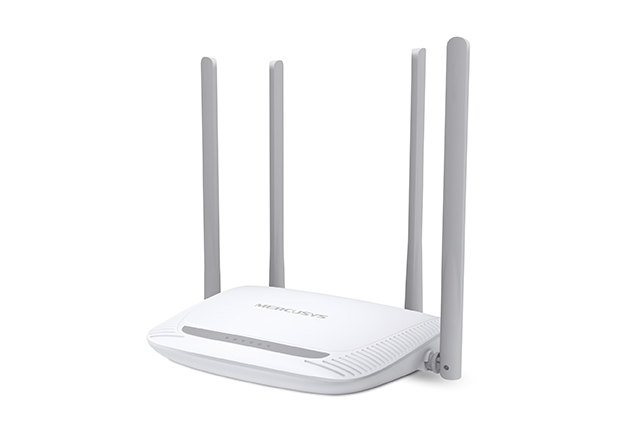

• Quad-Antenna Setup: Features four 5dBi external omnidirectional antennas that significantly boost signal strength and sensitivity.

• Broad Range: Marketed to provide up to 500 $m^2$ of Wi-Fi coverage (depending on environmental conditions).

• MIMO Technology: Uses 2×2 MIMO to enhance transmission and reception, reducing lag during gaming and streaming.

Network & Software Versatility:

• Multi-Mode Support: Can function as a standard Router, Range Extender, Access Point (AP), or WISP client.

• Security Suite: Includes Parental Controls (time limits and content filtering), Guest Network access, and standard WPA/WPA2-PSK encryption.

• IPv6 Ready: Fully supports the latest Internet Protocol version for future-proofing.

Hardware & Interface:

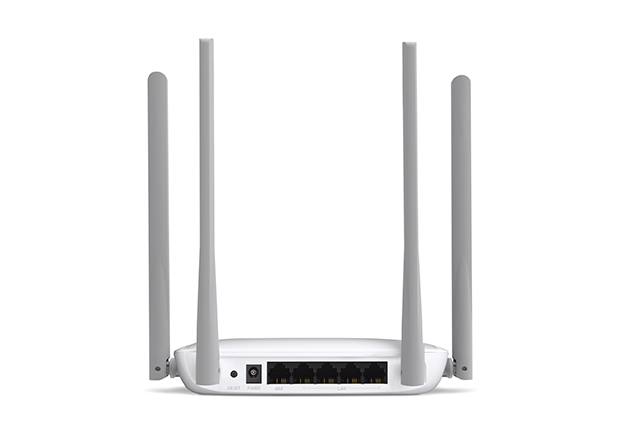

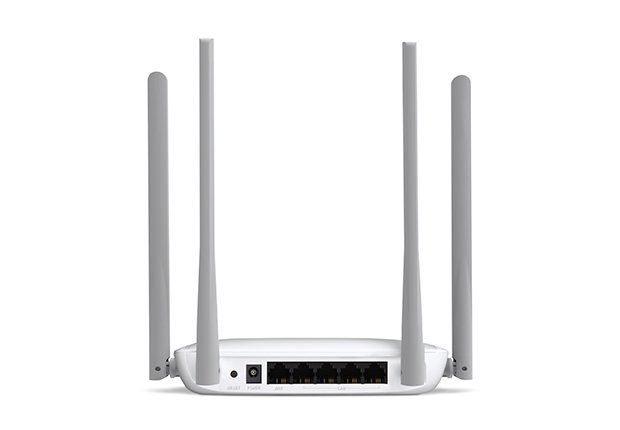

• Connectivity: Includes 1 x 10/100Mbps WAN port and 3 x 10/100Mbps LAN ports for wired connections.

• Chipset: Often powered by a Qualcomm chipset, providing better stability for multiple simultaneous connections compared to generic budget routers.

• Intuitive Setup: Features a three-step web-based installation guide; no technical expertise required.

• Compact Design: Lightweight and sleek white chassis with a dedicated Reset/WPS button.

Technical Specifications:

• Max Speed: 300 Mbps on the 2.4 GHz band.

• Power Supply: 5V / 0.6A.

• Management: Supports Local, Remote, and Access Control management.
