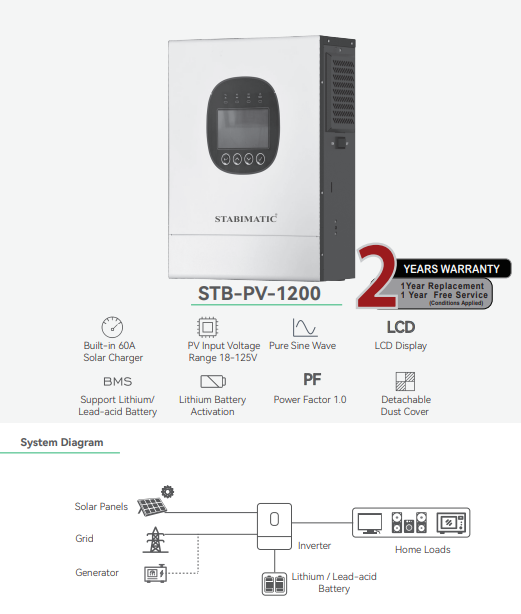

STABIMATIC STB-PV-1200

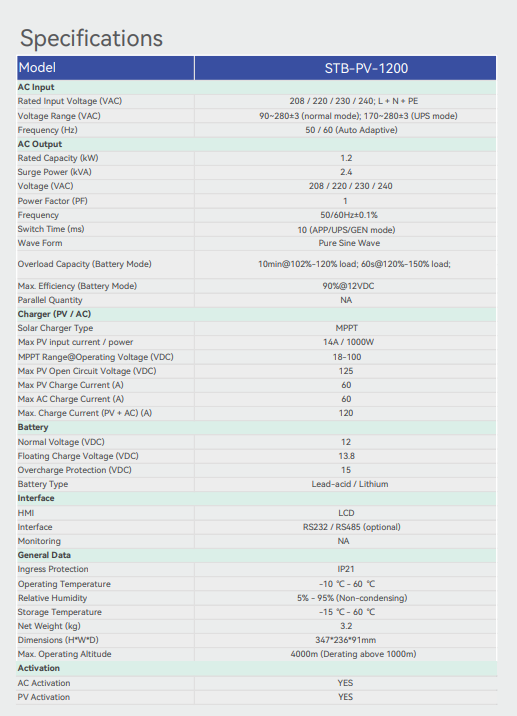

Power Performance:

• Rated Capacity: Delivers 1.2 kW of continuous power with a peak surge capability of 2.4 kVA.

• Pure Sine Wave: Ensures stable and clean electricity output, protecting sensitive devices from potential damage.

• High Efficiency: Maintains reliable performance with auto-adaptive 50/60 Hz frequency support.

Solar & Charging Capabilities:

• Advanced MPPT: Integrated 60A MPPT controller optimizes energy harvesting from solar arrays up to 1000W.

• Battery Compatibility: Supports both Lithium-ion and lead-acid battery systems (12V).

• Charging Flexibility: Features a combined charging capacity of up to 120A (60A PV and 60A AC).

• Activation Modes: Supports lithium battery activation and offers both AC and PV activation modes for versatile startup.

Design & Durability:

• Compact Build: Lightweight structure (approx. 3.2 kg) with dimensions of 347 × 236 × 91 mm for easy installation in tight spaces.

• Protection Rating: Carries IP21 protection and includes a detachable dust cover to maintain internal components.

• Environmental Resilience: Operates effectively in temperatures ranging from -10°C to 60°C and altitudes up to 4000m.

Smart Interface & Safety:

• User Interface: Equipped with an LCD display for real-time monitoring of system status and settings.

• Communication: Provides RS232/RS485 communication options for external data logging and management.

• Safety Protections: Includes built-in overcharge protection (15V) and float charging (13.8V) to extend battery life.
