STABIMATIC STB-PV-4200

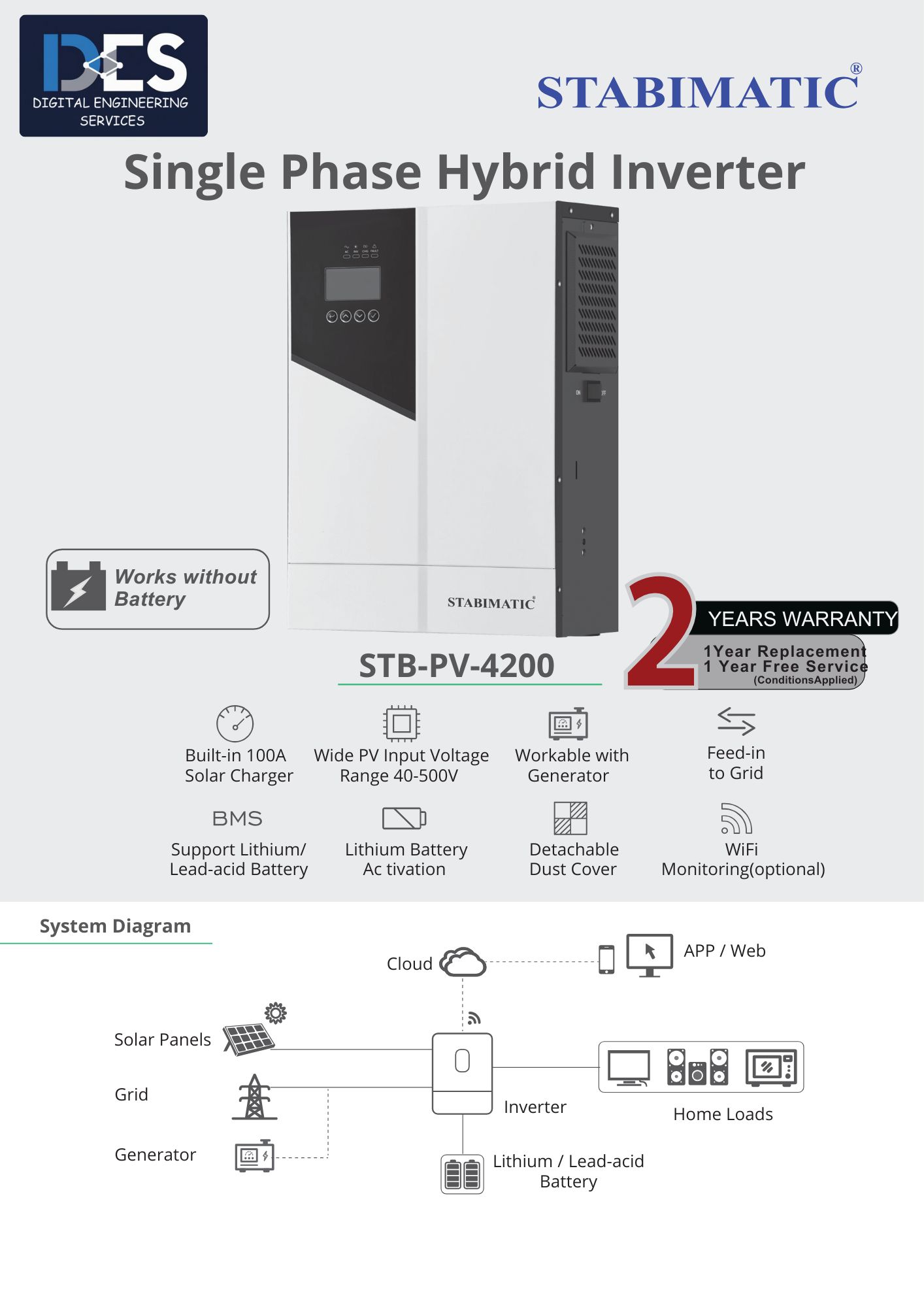

The Stabimatic STB-PV-4200 is a 3.6 kW Single Phase Hybrid Inverter designed for high-efficiency energy management in off-grid and hybrid setups. It features a built-in 100A MPPT solar charger that supports up to 5000W of PV input with a wide voltage range. Uniquely capable of working without a battery, it offers high flexibility for users and includes features like WiFi monitoring, a pure sine wave output, and compatibility with both lithium and lead-acid battery systems.

Add to compare
Add to wishlist
20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Payment Methods:

Description

  • Power Performance:

    • Rated Capacity: Provides 3.6 kW (3600W) of continuous power with a 7.2 kVA surge capacity.

    • Pure Sine Wave: Ensures clean electricity for sensitive home loads with a Power Factor of 1.0.

    • High Efficiency: Boasts a peak efficiency of 93.7% in battery mode (operating on a 24VDC system).

  • Solar & Hybrid Capabilities:

    • High PV Input: Supports a maximum solar array of 5000W with an MPPT range of 60–450VDC.

    • 100A MPPT Charger: Built-in 100A MPPT solar charger ensures rapid and efficient battery charging.

    • Battery-Free Mode: Can run household loads directly from solar panels without needing a battery connected.

    • Grid Interaction: Designed with the capability to feed excess solar energy back into the grid.

  • Smart Features & Connectivity:

    • Lithium Ready: Includes a dedicated lithium battery activation feature and supports BMS communication.

    • Integrated Monitoring: Supports WiFi monitoring (optional/external) for remote tracking via App or Web.

    • Generator Support: Fully compatible and workable with external generator inputs.

  • Physical & Safety Specs:

    • Compact Design: Weighs only 6.6 kg with a slim profile for easy installation.

    • Reliability: Rated IP20 for ingress protection and features a detachable dust cover for easier maintenance.

    • Protection: Includes built-in safeguards against overcharging and excessive voltage.
